3D Model Viewer
An interactive 3D model — load a .glb/.gltf file and visitors can orbit, zoom and (on supported devices) view it in augmented reality. Perfect for product showcases, characters and 3D art. Like every block in the library, it is a second authoring surface, not a second renderer: the canvas preview and the front end are both produced by the 3D Model Viewer element — the same server-side code as the page builder — so the output is identical either way.
Options
Select the block and open the Settings (block) tab; the whole sidebar is generated from the element's option schema, so it stays in step with the page builder.
| Option | What it does |
|---|---|
Model (model_url, model_file) | The .glb/.gltf model to load, by URL or upload. |
Camera (camera_controls, camera_orbit, auto_rotate, min_orbit/max_orbit, field_of_view) | Orbit/zoom controls, the starting angle, auto-rotation and limits. |
Lighting (environment, env_image, exposure, shadow_intensity, tone_mapping) | Image-based lighting, exposure and contact shadow. |
Background (background, bg_color, skybox) | Transparent, a solid colour, or a skybox. |
AR (ar, ar_placement, ar_scale) | Enable "view in your space" on supported devices. |
Playback (animation_name, animation_autoplay) | Play a named animation baked into the model. |
Hotspots (hotspots) | Pin annotations to points on the model. |
The block also opts into WordPress Margin / Padding (and, where it makes sense, alignment), which inherit the site's design system from theme.json.
:::note Part of the Animation Engine The 3D Model Viewer is an Animation Engine element. Activate the Animation Engine extension to use it. :::
Sample content

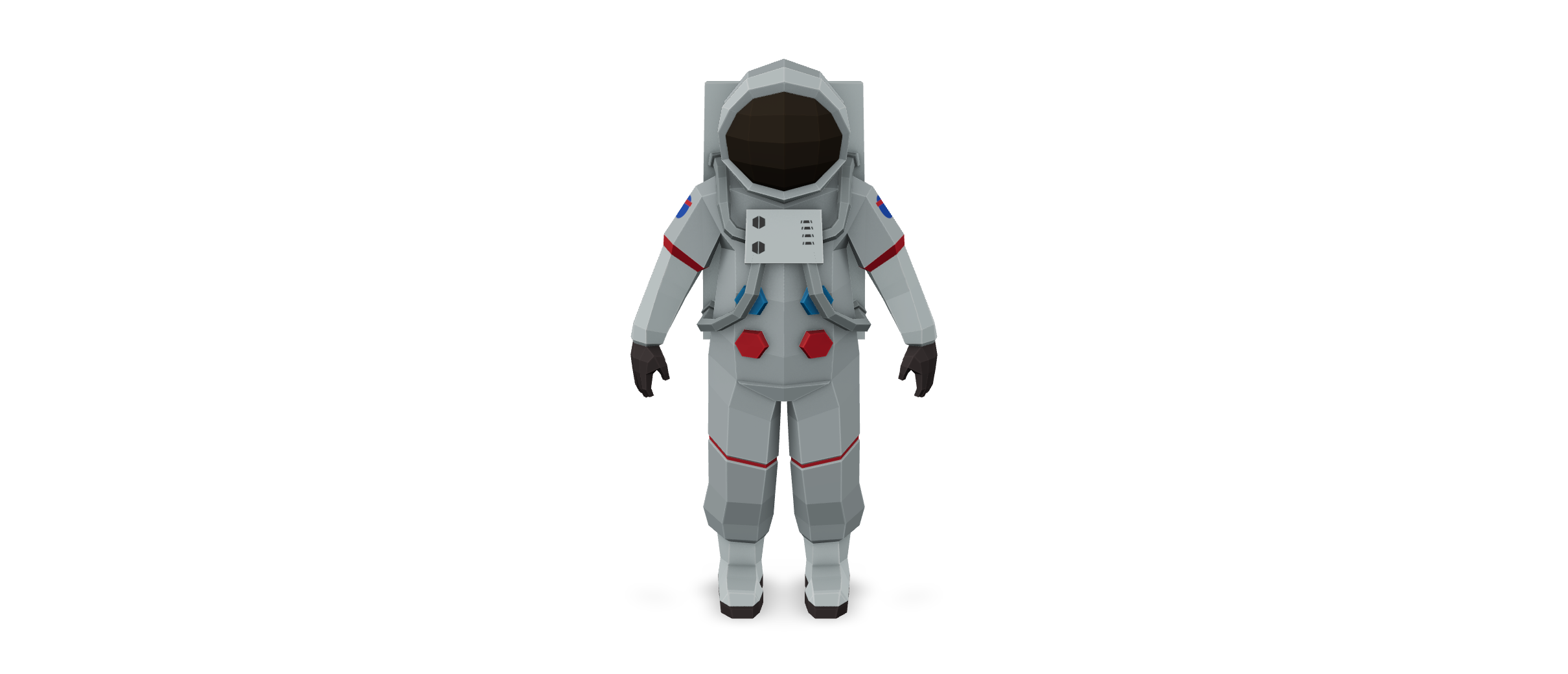

A block stores only what you change as one upOptions object; the element's declared defaults fill in the rest at render time. The demo above loads a .glb with orbit controls:
<!-- wp:unysonplus/model-viewer {"upOptions":{"source":"url","model_url":"https://…/model.glb","camera_controls":"yes","camera_orbit":"-25deg 80deg 105%"}} /-->
The 3D Model Viewer element
The block and the page builder's 3D Model Viewer element are two doors onto the same code. Its full option, markup and behaviour reference is documented there.
