SVG Morph
An SVG shape that morphs smoothly into another — one path fluidly reshaping into the next, looping or triggered on scroll. A playful accent for icons, blobs and logos. Like every block in the library, it is a second authoring surface, not a second renderer: the canvas preview and the front end are produced by the same server-side code as the page builder, so the output is identical either way.
Options
Select the block and open the Settings (block) tab; the whole sidebar is generated from the element's option schema, so it stays in step with the page builder.
| Option | What it does |
|---|---|
Source (source, library, custom) | Choose shapes from the built-in library or provide your own custom paths. |
Shapes (shapes_list, shape, d, markup) | The sequence of shapes/paths to morph between. |
Morph duration + Hold (morph_dur, hold) | How long each morph takes, and the pause on each shape. |
Easing (easing) + Loopback (loopback) | The motion curve, and whether it reverses back through the sequence. |
Render mode (render_mode, stroke_width) | Fill or stroke the shape, and the stroke thickness. |
Trigger (trigger) | What starts the animation — on scroll into view, on load, or on hover. |
Alignment (align) + Max width (max_width) | Position and size within the column. |
The block also opts into WordPress Margin / Padding (and, where it makes sense, alignment), which inherit the site's design system from theme.json.
:::note Part of the Animation Engine SVG Morph is an Animation Engine element. Activate the Animation Engine extension to use it. :::
Sample content

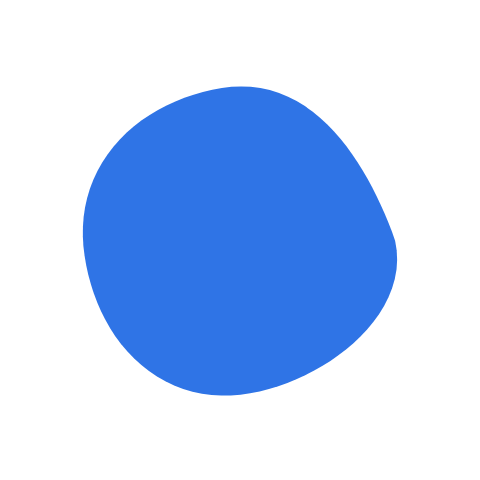

A block stores only what you change as one upOptions object; the element's declared defaults fill in the rest at render time. The demo above uses the default shape sequence:
<!-- wp:unysonplus/svg-morph {"upOptions":{"align":"center"}} /-->
