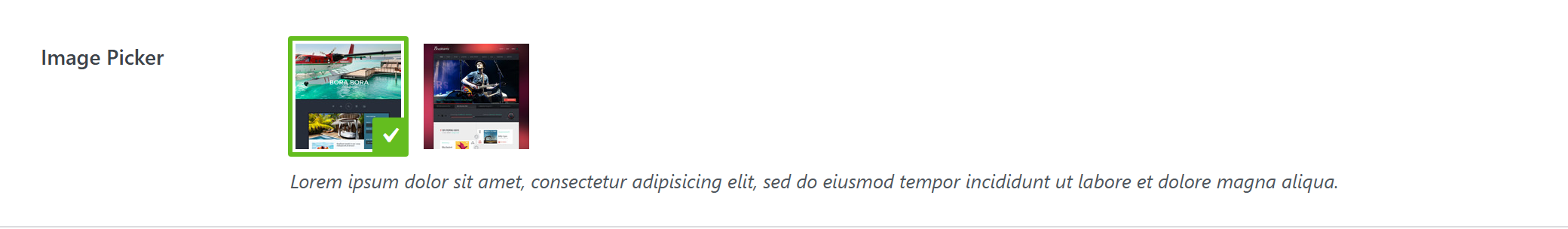

Image Picker

Pick an image.

$options = [
	'demo_image_picker' => [
		'label' => __( 'Image Picker', 'unysonplus' ),  // or false to hide the label column
		'type' => 'image-picker',
		'value' => '',
		'desc' => __( 'Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.',
			'unysonplus' ),
		'choices' => [
			'choice-1' => [
				'small' => [
					'height' => 70,
					'src' => get_template_directory_uri() . '/images/image-picker-demo/thumb1.jpg'
				],
				'large' => [
					'height' => 214,
					'src' => get_template_directory_uri() . '/images/image-picker-demo/tooltip1.jpg'
				],
			],
			'choice-2' => [
				'small' => [
					'height' => 70,
					'src' => get_template_directory_uri() . '/images/image-picker-demo/thumb2.jpg'
				],
				'large' => [
					'height' => 214,
					'src' => get_template_directory_uri() . '/images/image-picker-demo/tooltip2.jpg'
				],
			],
		],
		'help' => sprintf( "%s \n\n'\"<br/><br/>\n\n <b>%s</b>",
			__( 'Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.',
				'unysonplus' ),
			__( 'Sed ut perspiciatis, unde omnis iste natus error sit voluptatem accusantium doloremque laudantium',
				'unysonplus' )
		),
		// — Optional attributes you can add —
		// 'attr' => [ 'class' => 'my-class', 'data-foo' => 'bar' ],  // extra HTML attributes
		// 'blank' => true,  // allow deselecting (no choice)
	],
];

Custom Events

fw:option-type:image-picker:clicked - A thumbnail was clicked.

fw:option-type:image-picker:changed - Value was changed.

Reading the value

image-picker returns a string — output it directly.

In a shortcode

The shortcode framework passes the option values into view.php as $atts:

echo esc_html( $atts['demo_image_picker'] );

In a page template — a per-page option

Options defined on a post/page (a metabox) are read with fw_get_db_post_option():

$value = fw_get_db_post_option( get_the_ID(), 'demo_image_picker' );
echo esc_html( $value );

When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):

$book = fw_get_db_post_option( get_the_ID(), 'book' );
echo esc_html( $book['demo_image_picker'] );

In Theme Settings — a global option

Global options are read with fw_get_db_settings_option():

$value = fw_get_db_settings_option( 'demo_image_picker' );
echo esc_html( $value );

Saved value

fw_print( fw_get_db_settings_option( 'demo_image_picker' ) ) outputs — the shape of this option type's stored value:

choice-1

In Gutenberg blocks (the React control)

image-picker is one of the option types that also has a React version, so it can appear inside a Gutenberg block's sidebar.

Everything above is rendered by PHP — _render() builds the HTML and jQuery makes it interactive. That works in the page builder and on Theme Settings, which are ordinary admin pages. A block's settings sidebar is a React app, which draws the whole panel itself and will not accept ready-made HTML from PHP.

So the option type gets a second renderer. Both read the same schema — the array you write in options.php — and both produce the same saved value. The PHP path stays authoritative; the React path is additive. See text for the full explanation of how the two fit together.

What the image-picker control does

A grid of image tiles built from choices, with the selected tile outlined in the admin accent colour.

Three parts of the schema change how it behaves:

Schema key	Effect
choices	the tiles — a choice carrying its own choices is a category group, flattened recursively
multiple	changes the value type: a key string when off, an array of keys when on
blank	whether clicking the selected tile clears it

A tile's image can be declared three ways, and all three are read: a plain src string, a small / large / data object, or a small object carrying src and alt.

blank and deselection

When blank is off, PHP refuses an empty key and restores the default — so the control does not offer a deselect the server would immediately undo. Turn blank on if you want the tile to be clearable.
