Popover
Collapses an option into a compact trigger that expands an in-flow panel on click. With a single inner option the value passes straight through; with tabs the value is a hash keyed by inner-option id.
To make a compact popover that previews presets (like the Section’s Background Pattern), see Preset preview pickers.

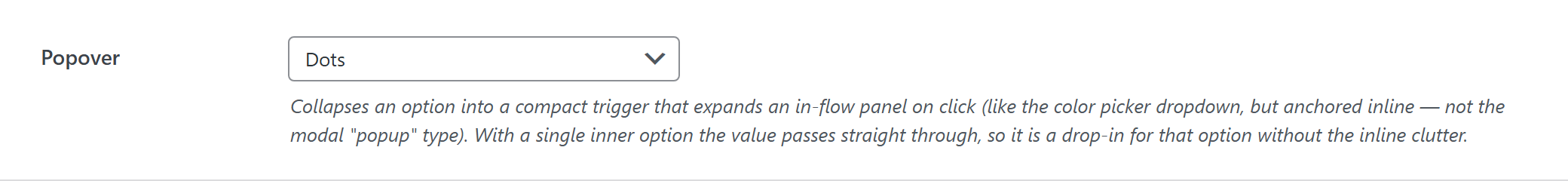

Popover
$options = [
'demo_popover' => [
'label' => __( 'Popover', 'unysonplus' ),
'type' => 'popover',
'value' => 'a',
'desc' => __( 'Collapses an option into a compact trigger that expands an in-flow panel on click (like the color picker dropdown, but anchored inline — not the modal "popup" type). With a single inner option the value passes straight through, so it is a drop-in for that option without the inline clutter.', 'unysonplus' ),
'help' => __( 'Click the field to reveal the hosted control; pick a value and it collapses again, showing the selection. The "summary" map turns the saved value into the friendly label on the trigger.', 'unysonplus' ),
// value => trigger label
'summary' => [
'a' => __( 'Dots', 'unysonplus' ),
'b' => __( 'Romb', 'unysonplus' ),
'c' => __( 'Squares', 'unysonplus' ),
'd' => __( 'Waves', 'unysonplus' ),
],
// One inner option → its value is the popover's value (passthrough).
'inner-options' => [
'pattern' => [
'type' => 'image-picker',
'label' => false,
'value' => 'a',
'choices' => [
'a' => get_template_directory_uri() . '/images/patterns/dots_pattern_preview.jpg',
'b' => get_template_directory_uri() . '/images/patterns/romb_pattern_preview.jpg',
'c' => get_template_directory_uri() . '/images/patterns/square_pattern_preview.jpg',
'd' => get_template_directory_uri() . '/images/patterns/waves_pattern_preview.jpg',
],
],
],
// — Optional attributes you can add —
// 'summary_key' => '',
// 'reflect' => null,
// 'autoclose' => null,
],
];

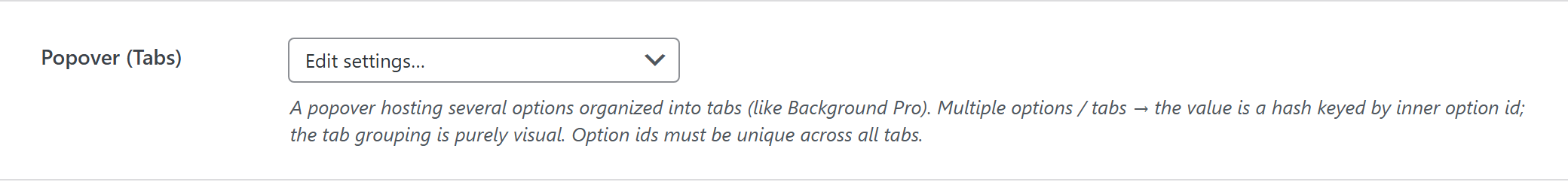

Popover (Tabs)
$options = [
'demo_popover_tabs' => [
'label' => __( 'Popover (Tabs)', 'unysonplus' ),
'type' => 'popover',
'trigger_label' => __( 'Edit settings…', 'unysonplus' ),
'desc' => __( 'A popover hosting several options organized into tabs (like Background Pro). Multiple options / tabs → the value is a hash keyed by inner option id; the tab grouping is purely visual. Option ids must be unique across all tabs.', 'unysonplus' ),
'help' => __( 'Click to open, switch tabs to reach each group of controls. The trigger keeps a static label here because there is no single value to summarise.', 'unysonplus' ),
'tabs' => [
'content' => [
'label' => __( 'Content', 'unysonplus' ),
'options' => [
'title' => [ 'type' => 'text', 'label' => __( 'Title', 'unysonplus' ), 'value' => '' ],
'subtitle' => [ 'type' => 'text', 'label' => __( 'Subtitle', 'unysonplus' ), 'value' => '' ],
],
],
'style' => [
'label' => __( 'Style', 'unysonplus' ),
'options' => [
'color' => [ 'type' => 'color-picker', 'label' => __( 'Color', 'unysonplus' ), 'value' => '#2271b1' ],
'size' => [
'type' => 'select',
'label' => __( 'Size', 'unysonplus' ),
'value' => 'md',
'choices' => [
'sm' => __( 'Small', 'unysonplus' ),
'md' => __( 'Medium', 'unysonplus' ),
'lg' => __( 'Large', 'unysonplus' ),
],
],
],
],
'advanced' => [
'label' => __( 'Advanced', 'unysonplus' ),
'options' => [
'css_class' => [ 'type' => 'text', 'label' => __( 'CSS Class', 'unysonplus' ), 'value' => '' ],
],
],
],
],
];
Reading the value
popover returns a string — output it directly.
In a shortcode
The shortcode framework passes the option values into view.php as $atts:
echo esc_html( $atts['demo_popover'] );
In a page template — a per-page option
Options defined on a post/page (a metabox) are read with fw_get_db_post_option():
$value = fw_get_db_post_option( get_the_ID(), 'demo_popover' );
echo esc_html( $value );
When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):
$book = fw_get_db_post_option( get_the_ID(), 'book' );
echo esc_html( $book['demo_popover'] );
In Theme Settings — a global option
Global options are read with fw_get_db_settings_option():
$value = fw_get_db_settings_option( 'demo_popover' );
echo esc_html( $value );
Saved value
fw_print( fw_get_db_settings_option( 'demo_popover' ) ) outputs — the shape of this option type's stored value:
Array
(
[width] => Array
(
[value] => 320
[unit] => px
)
)
In Gutenberg blocks (the React control)
popover is one of the option types that also has a React version, so it can appear inside a Gutenberg block's sidebar.
Everything above is rendered by PHP. A block's settings sidebar is a React app and will not accept ready-made HTML from PHP, so the option type gets a second renderer. Both read the same schema and both produce the same saved value. See text for the full explanation.
What the popover control does
The inner options, rendered inline rather than behind a trigger — the same reasoning as the repeaters: a floating panel launched from a narrow sidebar covers the very preview you are editing against.
This is the detail that decides whether a popover works at all:
- One inner option — the popover's value is that option's value, stored unwrapped. A schema declaring
[ 'fx' => … ]stores'left', not[ 'fx' => 'left' ]. - Two or more — a hash keyed by inner id, like
multi.
_get_value_from_input() branches on exactly that count. A control that always wrapped — or never did — would produce a value the element's view cannot read, and for the single-option case, which is most of them, the symptom is a setting that silently reverts.
Both shapes are asserted in the parity suite so the branch cannot be tidied away.
inner-options and tabs[].options are merged, in that order, exactly as collect_definitions() does. A schema may use either or both.
A popover usually carries the human-readable label while its lone inner option sets label => false. The control uses the popover's label in that case, rather than rendering a field with no name.
