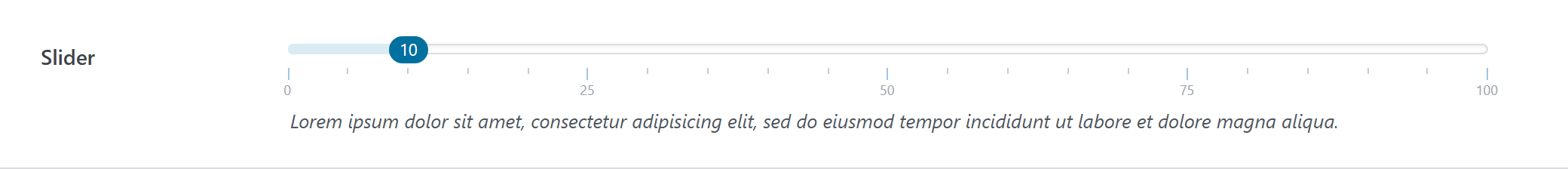

Slider

Drag the handle to select a numeric value.

$options = [
	'demo_slider' => [
		'label' => __( 'Slider', 'unysonplus' ),  // or false to hide the label column
		'type' => 'slider',
		'value' => 10,
		'desc' => __( 'Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.', 'unysonplus' ),
		'help' => sprintf( "%s \n\n'\"<br/><br/>\n\n <b>%s</b>",
			__( 'Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.', 'unysonplus' ),
			__( 'Sed ut perspiciatis, unde omnis iste natus error sit voluptatem accusantium doloremque laudantium', 'unysonplus' )
		),
		// — Optional attributes you can add —
		// 'attr' => [ 'class' => 'my-class', 'data-foo' => 'bar' ],  // extra HTML attributes
		// 'properties' => [ 'min' => 0, 'max' => 100, 'step' => 1 ],
	],
];

Reading the value

slider returns a number — output it directly.

In a shortcode

The shortcode framework passes the option values into view.php as $atts:

echo (float) $atts['demo_slider'];

In a page template — a per-page option

Options defined on a post/page (a metabox) are read with fw_get_db_post_option():

$value = fw_get_db_post_option( get_the_ID(), 'demo_slider' );
echo (float) $value;

When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):

$book = fw_get_db_post_option( get_the_ID(), 'book' );
echo (float) $book['demo_slider'];

In Theme Settings — a global option

Global options are read with fw_get_db_settings_option():

$value = fw_get_db_settings_option( 'demo_slider' );
echo (float) $value;

Saved value

fw_print( fw_get_db_settings_option( 'demo_slider' ) ) outputs — the shape of this option type's stored value:

7

In Gutenberg blocks (the React control)

slider is one of the option types that also has a React version, so it can appear inside a Gutenberg block's sidebar.

Everything above is rendered by PHP — _render() builds the HTML and jQuery makes it interactive. That works in the page builder and on Theme Settings, which are ordinary admin pages. A block's settings sidebar is a React app, which draws the whole panel itself and will not accept ready-made HTML from PHP.

So the option type gets a second renderer. Both read the same schema — the array you write in options.php — and both produce the same saved value. The PHP path stays authoritative; the React path is additive. See text for the full explanation of how the two fit together.

What the slider control does

It wraps WordPress's RangeControl, reading its bounds from properties:

Schema key	Becomes
label	the field label
desc	the help text
properties.min	the range minimum
properties.max	the range maximum
properties.step	the step increment

The stored value is a number — _get_value_from_input() ends in floatval(), so the control emits 40, never the string "40" an input element would otherwise give. Storing the wrong one makes a value compare unequal to itself across the two renderers.

The same control also serves short-slider, which differs only in rendered width on PHP-driven admin screens — a distinction a block sidebar has nothing to express.
