Spacing

Composite Margin + Padding widget — each column has an All Sides select plus a Top / Right / Bottom / Left quadrant arranged like a "+". Values are Bootstrap utility class names from the live spacing scale. Scope it with mode => margin or mode => padding.

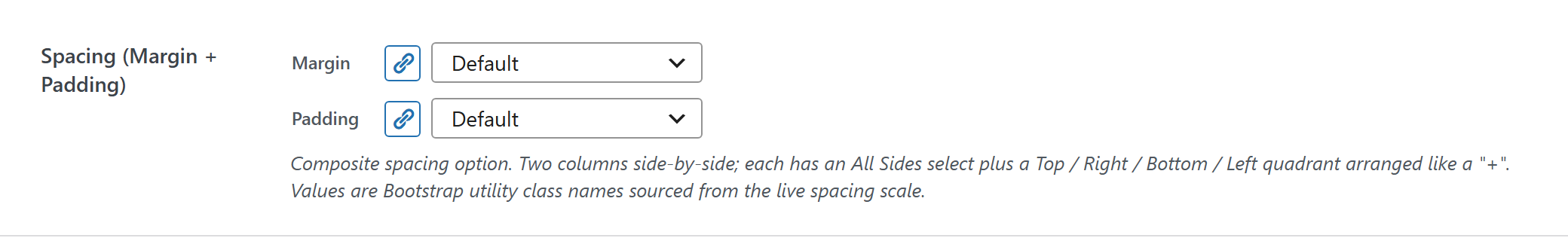

Margin + Padding

$options = [
	'demo_spacing' => [
		'label' => __( 'Spacing (Margin + Padding)', 'unysonplus' ),
		'type' => 'spacing',
		'desc' => __( 'Composite spacing option. Two columns side-by-side; each has an All Sides select plus a Top / Right / Bottom / Left quadrant arranged like a "+". Values are Bootstrap utility class names sourced from the live spacing scale.', 'unysonplus' ),
		// — Optional attributes you can add —
		// 'value' => [],
	],
];

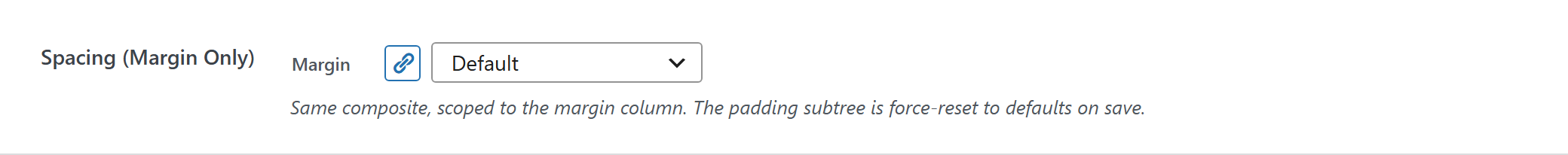

Margin only

$options = [
	'demo_spacing_margin_only' => [
		'label' => __( 'Spacing (Margin Only)', 'unysonplus' ),
		'type' => 'spacing',
		'mode' => 'margin',
		'desc' => __( 'Same composite, scoped to the margin column. The padding subtree is force-reset to defaults on save.', 'unysonplus' ),
	],
];

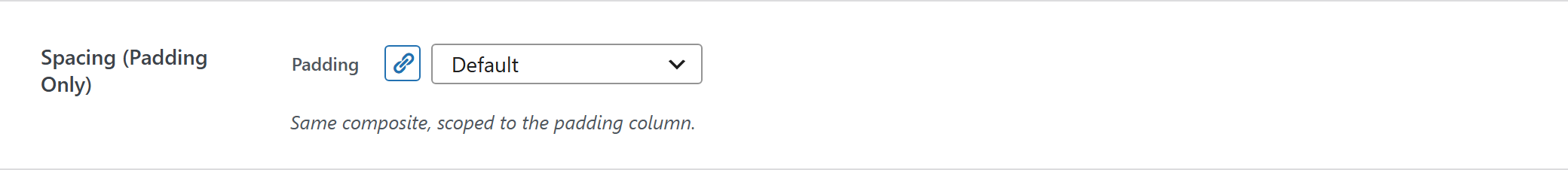

Padding only

$options = [
	'demo_spacing_padding_only' => [
		'label' => __( 'Spacing (Padding Only)', 'unysonplus' ),
		'type' => 'spacing',
		'mode' => 'padding',
		'desc' => __( 'Same composite, scoped to the padding column.', 'unysonplus' ),
	],
];

Reading the value

spacing returns an array — read a field by key (the full shape is in Saved value below).

In a shortcode

The shortcode framework passes the option values into view.php as $atts:

$value = $atts['demo_spacing'];
// $value['padding'] and $value['margin'] hold the sides (see Saved value)
$padding = $value['padding'];

In a page template — a per-page option

Options defined on a post/page (a metabox) are read with fw_get_db_post_option():

$value = fw_get_db_post_option( get_the_ID(), 'demo_spacing' );
// $value['padding'] and $value['margin'] hold the sides (see Saved value)
$padding = $value['padding'];

When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):

$book  = fw_get_db_post_option( get_the_ID(), 'book' );
$value = $book['demo_spacing'];
// $value['padding'] and $value['margin'] hold the sides (see Saved value)
$padding = $value['padding'];

In Theme Settings — a global option

Global options are read with fw_get_db_settings_option():

$value = fw_get_db_settings_option( 'demo_spacing' );
// $value['padding'] and $value['margin'] hold the sides (see Saved value)
$padding = $value['padding'];

Saved value

fw_print( fw_get_db_settings_option( 'demo_spacing' ) ) outputs — the shape of this option type's stored value:

Array
(
    [margin] => Array
        (
            [all] =>
            [top] => mt-4
            [right] =>
            [bottom] => mb-4
            [left] =>
        )

    [padding] => Array
        (
            [all] => p-3
            [top] =>
            [right] =>
            [bottom] =>
            [left] =>
        )

    [advanced] => Array
        (
        )

)

In Gutenberg blocks (the React control)

spacing is one of the option types that also has a React version, so it can appear inside a Gutenberg block's sidebar.

Everything above is rendered by PHP — _render() builds the HTML and jQuery makes it interactive. A block's settings sidebar is a React app, which draws the whole panel itself and will not accept ready-made HTML from PHP. So the option type gets a second renderer: both read the same schema and both produce the same saved value. See text for the full explanation.

What the spacing control does

Device tabs (Base / md / lg) switch which layer you are editing, and each visible section shows five dropdowns — all, top, right, bottom, left.

Schema key	Effect
label	the field label
desc	the help text
mode	which sections appear — both (default), margin, or padding
scale	optional override for the token ladder (see below)

The values are Bootstrap tokens, not CSS lengths

Every slot stores a token name from the spacing scale — '0'–'5' by default — or an empty string for "not set". They are not lengths.

The server sanitises each slot with preg_replace( '/[^a-zA-Z0-9_-]/', '' ), so a value like 12% would be stored as 12 and a value like 1.5rem as 15rem — surviving sanitisation while meaning nothing to the CSS generator. The React control therefore only ever offers tokens from the scale, never a free-text length.

The scale is resolved on the server

get_scale() applies the fw_option_type_spacing_scale filter, so a site can replace Bootstrap's ladder entirely. That resolved scale is not part of the option schema, so a React control cannot read it.

The control uses option.scale when a caller supplies it, and otherwise falls back to the same built-in default the PHP type uses — so the common case is exact. If your site filters the scale and you want it reflected in block sidebars, pass it through the schema explicitly.

note

mode narrows what is saved

The server only reads the sections mode permits — a padding value submitted to a mode: 'margin' option is dropped, not stored. The control renders only the permitted sections for the same reason: offering an edit that silently vanishes on save is worse than not offering it.

The control always emits the complete value structure (both sections, all three device layers), because the server rebuilds that shape from its defaults on every save. Emitting it whole is what keeps a value saved from a block sidebar byte-identical to one saved in the page builder.
