Upload

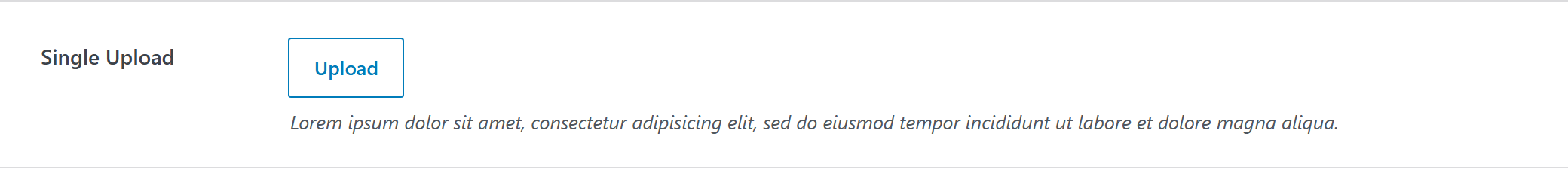

Single file upload.

$options = [
	'demo_upload' => [
		'label' => __( 'Single Upload', 'unysonplus' ),  // or false to hide the label column
		'desc' => __( 'Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.',
			'unysonplus' ),
		'type' => 'upload',
		'images_only' => false,
		'help' => sprintf( "%s \n\n'\"<br/><br/>\n\n <b>%s</b>",
			__( 'Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.',
				'unysonplus' ),
			__( 'Sed ut perspiciatis, unde omnis iste natus error sit voluptatem accusantium doloremque laudantium',
				'unysonplus' )
		),
		// — Optional attributes you can add —
		// 'texts' => [],
		// 'value' => '',
		// 'extra_mime_types' => [],
		// 'attr' => [ 'class' => 'my-class', 'data-foo' => 'bar' ],  // extra HTML attributes
		// 'files_ext' => [ 'pdf', 'zip' ],  // restrict to these extensions
		// 'thumb_max_width' => '240px',  // cap the preview thumbnail width
	],
];

Custom Events

fw:option-type:upload:change - The value was changed.

fw:option-type:upload:clear - The value was cleared (the selected item is removed).

Reading the value

upload returns a string — output it directly.

In a shortcode

The shortcode framework passes the option values into view.php as $atts:

echo esc_url( $atts['demo_upload'] );

In a page template — a per-page option

Options defined on a post/page (a metabox) are read with fw_get_db_post_option():

$value = fw_get_db_post_option( get_the_ID(), 'demo_upload' );
echo esc_url( $value );

When the field is one of several inside a box/group, read the whole group once and pick fields by key — the common CPT pattern (e.g. a review or book box):

$book = fw_get_db_post_option( get_the_ID(), 'book' );
echo esc_url( $book['demo_upload'] );

In Theme Settings — a global option

Global options are read with fw_get_db_settings_option():

$value = fw_get_db_settings_option( 'demo_upload' );
echo esc_url( $value );

Saved value

fw_print( fw_get_db_settings_option( 'demo_upload' ) ) outputs — the shape of this option type's stored value:

Array
(
    [attachment_id] => 123
    [url] => https://example.com/wp-content/uploads/2026/06/photo.jpg
)

In Gutenberg blocks (the React control)

upload is one of the option types that also has a React version, so it can appear inside a Gutenberg block's sidebar.

Why this exists

Everything above is rendered by PHP — _render() builds the HTML and jQuery wires up the media button. That works on ordinary admin screens like the page builder and Theme Settings.

A Gutenberg block's settings sidebar is a React app. React draws that panel itself and will not accept ready-made HTML from PHP, so a PHP-only option type cannot appear there.

Rather than rewrite the option type, it gets a second renderer. Both read the same schema you write in options.php, and — crucially for this type — both save the same value shape:

	Renders	Used by
PHP _render()	HTML	Page builder, Theme Settings, metaboxes
React control	a React component	Gutenberg block sidebars

React handles editing only. The front end is still rendered by PHP.

What the upload control does

It uses WordPress's own MediaUpload component to open the standard media library modal — the same one you get from the PHP version, and the same one core blocks use. There is no custom uploader.

Around it, the control renders a thumbnail of the current image and Select / Replace / Remove buttons using WordPress's Button and BaseControl components, so it matches native block settings.

The value shape is the contract

This is the part that matters most for upload. As shown under Saved value above, the stored value is an array:

Array
(
    [attachment_id] => 123
    [url] => //example.com/wp-content/uploads/2026/06/photo.jpg
)

The React control writes exactly that shape:

onChange( {
    attachment_id: media.id,
    url: toProtocolRelative( media.url ),
} );

That is what makes the two renderers interchangeable. An image picked in a block sidebar and an image picked in the page builder produce identical stored data, so the same PHP reads both, and switching a value between contexts never corrupts it.

Why the URL loses its https:

Note toProtocolRelative() — it strips https:// down to //. This is a protocol-relative URL, and it matches what the PHP renderer has always stored.

The reason is portability: a site that later moves between http and https, or is cloned to a staging domain, would otherwise carry hard-coded schemes into every saved option. A // URL simply adopts whatever the page is using.

For display inside the editor the control converts it back (toDisplayUrl()), because an <img src="//…"> is fine in a browser but awkward to reason about while debugging.

Graceful degradation

The media library is not available on every admin screen. If wp.mediaUtils and wp.blockEditor are both absent, the control renders a plain message rather than throwing — the option stays visible and the rest of the sidebar keeps working.

No second copy of React

The bundle contains no React. JSX compiles to wp.element.createElement, and wp.element is the React WordPress already loads in wp-admin — so the control uses React without shipping it.

For option-type authors

Most option types have no React control yet. That is a coverage gap, not an error — such an option shows a clear notice in a block sidebar and works normally everywhere else. Controls get ported when a block actually needs them.
